HYDTHC Portable plasma cutting torch height controller

HYDTHC Portable plasma cutting torch height controller

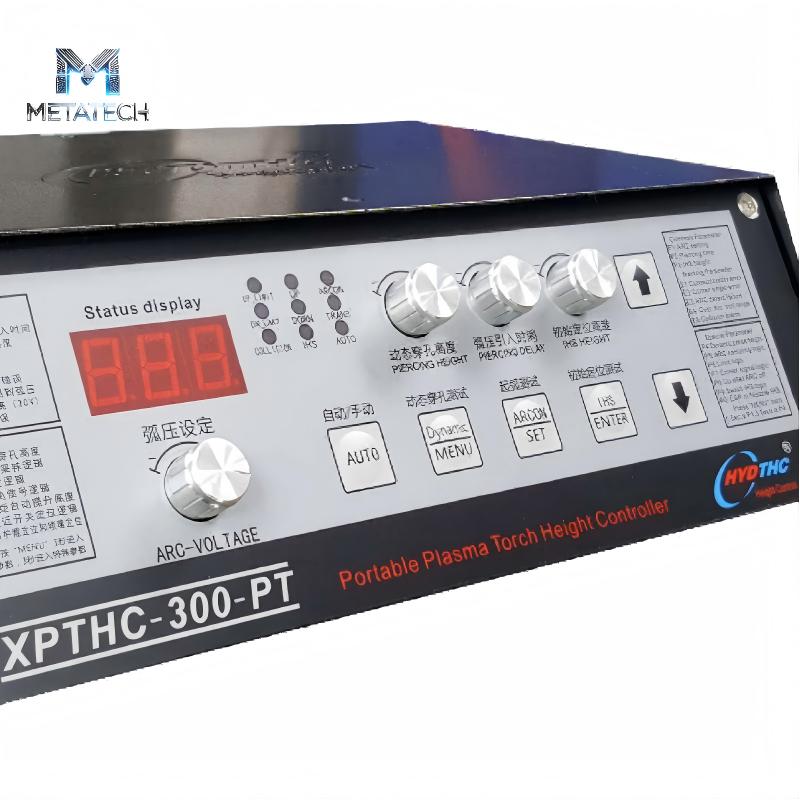

XPTHC-300-PT
Portable Arc voltage torch height controller
Application
XPTHC-300-PT supports almost all plasma cutters on market like Hypertherm, Thermal Dynamics…
And it supports all CNC cutting controllers on market like Hypertherm, Burny industrial level controllers or
Mach3 such DIY controllers, because XPTHC-300-PT can start Auto Height control with or without Auto
enable signal from CNC. But with Auto enable/disable signal from CNC, THC would work better.
1.3 Basic parameter
Ø Input power: DC24V 10% & AC24V 10%，50Hz/60Hz 。
Ø Up/Down motor: DC24V DC MOTOR
Ø Motor Drive: PWM
Ø Output Current: 1A-4A，Max capacity: 100W
Ø Working temperature : -10∽60°C。
Ø IHS: Proximity switch IHS & Retaining cap IHS
Ø Run transmission mode: Output the successful signal when the arc voltage is detected.
Ø Voltage Divide ratio : 50:1
Ø Control accuracy: ±1V∽±2V (related to lifter and motor voltage )
Ø Size: length *width *height 272mmX225mmX80mm
Ø The speed of lifting: 800mm/min∽4000mm/min（recommend 2500mm/min）
Ø Setting Arc Voltage arrange: 30V∽250V, According to different applications
Ø Overload Protection Mode: PWM mode with overload protection.
Ø Test Max cutting speed : 24000mm/min (Related to customer’s lifter voltage ,speed and
sensitive setting. )
